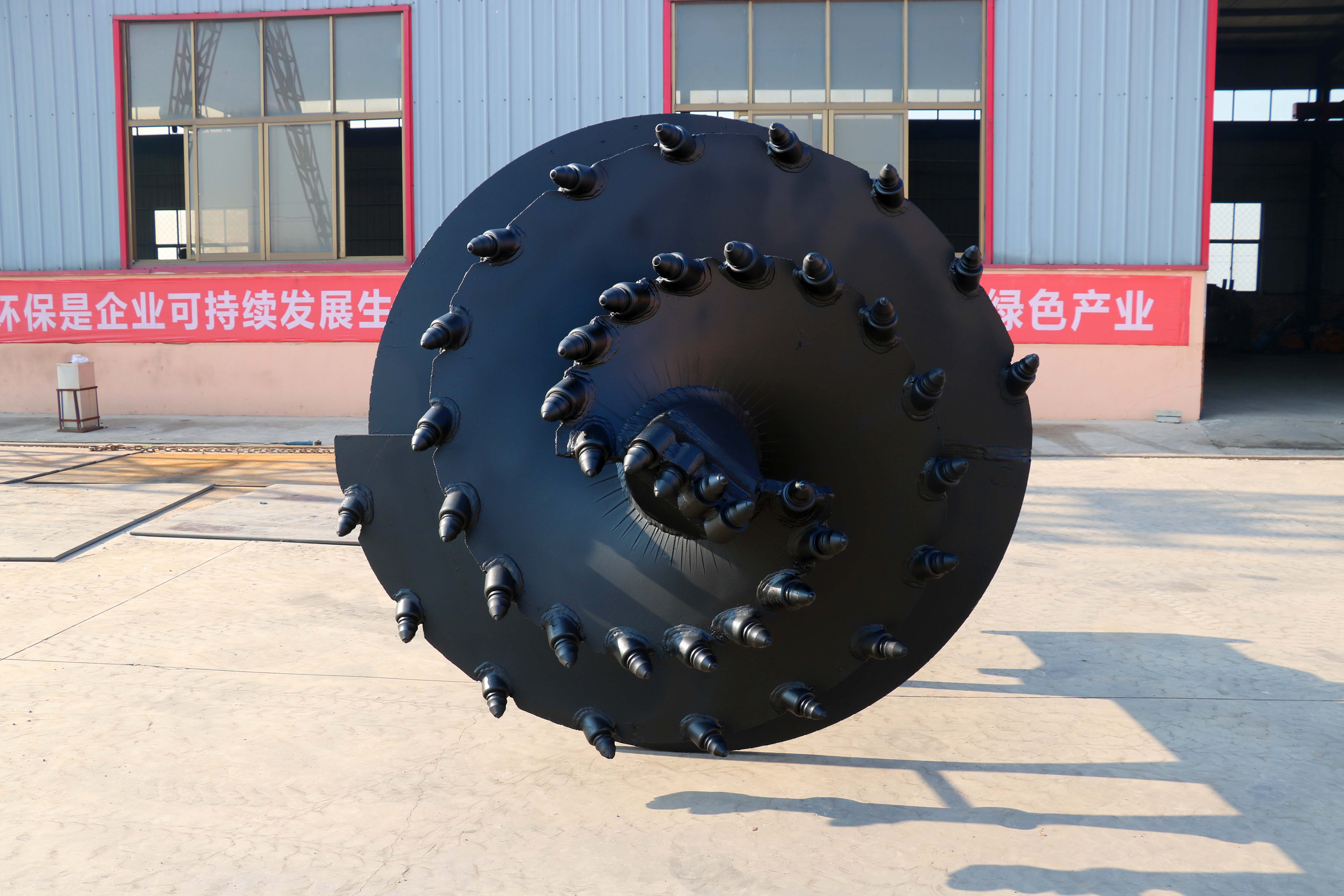

Boring Pile Accessories 1500mm Double Cut B47K22H Rock Auger Drill
Bit
Feature:
1. Design as straight type, better for carry soil ;
2. Double cutter bearing uniform force, can avoid inclined hole ;
3. Double spiral easy to carry soil, but meet cohesive soil, single
spiral is easy to dump spoil;
4.Hard facipsstrips on flights for wear protection.
Auger types and appliaction:
1. Single cut single spiral concial rock auger / double cut single
spiral concial rock auger / double cut double spiral conical rock
auger :
Main Application:
are suitable for Medium to strong rock (15-60Mpa);
2. Single cut straight rock auger / double cut single spiral
straight rock auger / double cut double spiral straight rock auger:
Main Application:
Very dense sand and gravel,weak rock (<5Mpa)
3. Single cut straight soil auger / double cut single spiral
straight soil auger/double cut double spiral straight soil auger:
Main Application:
Soft to stiff silt and clay ,loose to medium dense sand and gravel.
Model List
| Cutting Dia. | Spiral HIT. | Spiral Pitch | Shell THK | Center Tube OD. | Weight |
| φ600 | 1100 | 600+400 | 20+30 | 219 | 535 |
| φ800 | 1500 | 600+400 | 20+30 | 245 | 750 |
| φ900 | 1500 | 600+500 | 20+30 | 245 | 820 |
| φ1000 | 1500 | 600 | 20+30 | 245 | 950 |
| φ1200 | 1500 | 600 | 30+30 | 245 | 1050 |
| φ1500 | 1500 | 600 | 30+30 | 273 | 1450 |
| φ1600 | 1500 | 600 | 30+30 | 273 | 1650 |
| φ1800 | 1500 | 600 | 35+30 | 273 | 1950 |
| φ2000 | 1500 | 600 | 35+30 | 273 | 2300 |
| Remark:all measurements in millimeters (mm); weight in
kilograms(kg); |
|
Package:
Packaging details for BJTUFF drilling auger:
1.100% inspection before shipment.
2. Wrapped with plastic film.
3. Fixed with iron support.
4. Packed with plastic cases and wooden cases for drilling bits,
clay teeth or other small accessories.
5.As clients' requirements.
FAQ:
1. Are you factory or not?
Yes, we manufactured drilling products for 7 years in Hebei,China.
Warmly welcome to visit our factory and office.
2. What does your company make?
The main products of our company include drilling bucket, auger
bucket,drilling teeth,pile breaker, kelly bar and casing pipe.
3. What about your drlling product delivery time?
Usually it is 7-20 days. For some special case, we can deliver it
in shorter time. It depends on different products.
4. Do you offer discounts for your drilling product?
Yes. Depends on order quantity.
