Q355B 1500mm Bullet Teeth Open Type Drill Bucket Boring Tool

    Buy cheap Q355B 1500mm Bullet Teeth Open Type Drill Bucket Boring Tool from wholesalers

    Buy cheap Q355B 1500mm Bullet Teeth Open Type Drill Bucket Boring Tool from wholesalers
    • Buy cheap Q355B 1500mm Bullet Teeth Open Type Drill Bucket Boring Tool from wholesalers
    • Buy cheap Q355B 1500mm Bullet Teeth Open Type Drill Bucket Boring Tool from wholesalers

    Q355B 1500mm Bullet Teeth Open Type Drill Bucket Boring Tool

    Ask Lasest Price
    Brand Name : BJTUFF
    Model Number : 1500mm
    Price : Negotiated
    Supply Ability : 200 Pieces/30 days
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

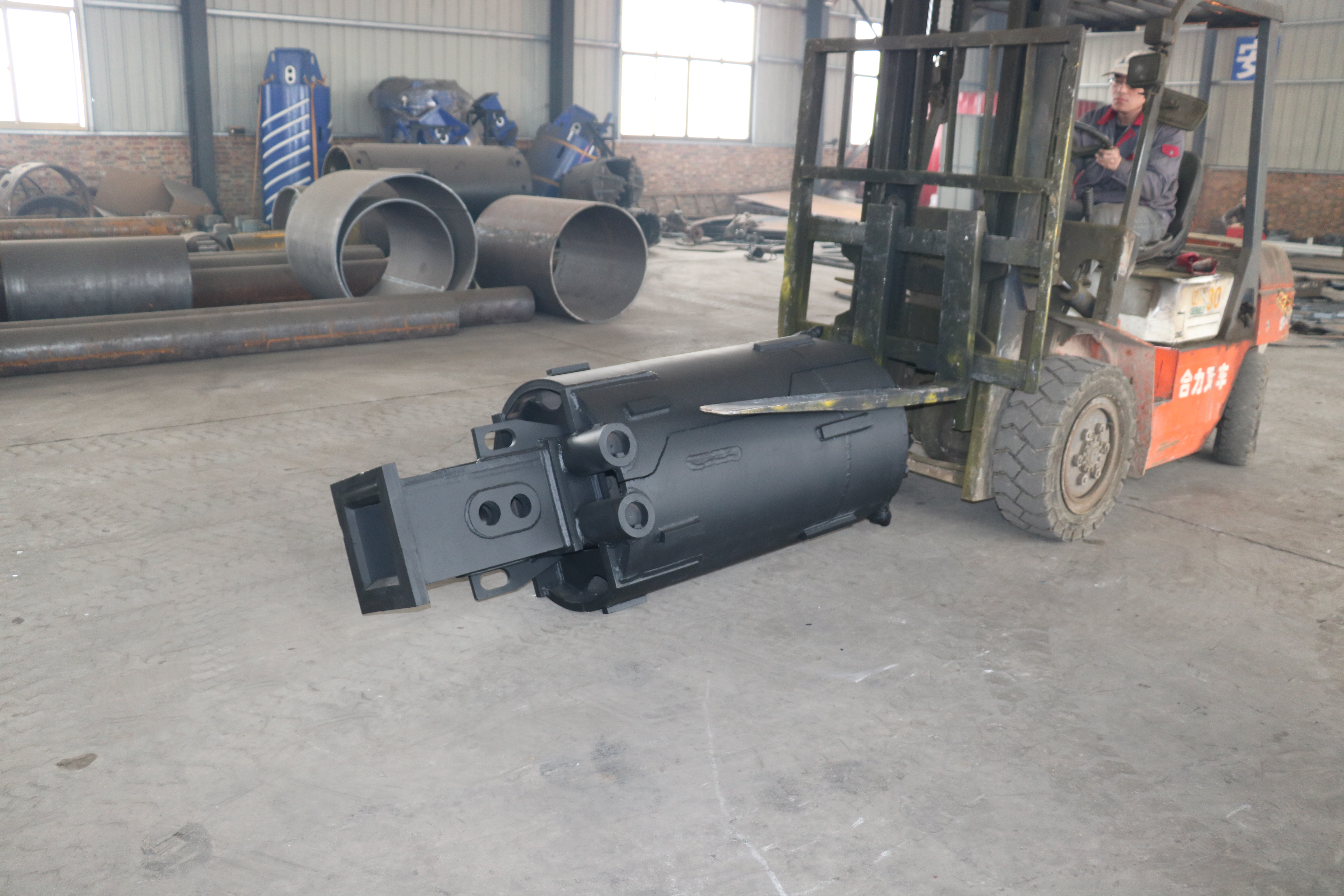

    Q355B 1500mm Bullet Teeth Open Type Drill Bucket Boring Tool

    Material Q355B Boring Tool Open Type Drilling Bucket With Bullet Teeth


    Feature

    1. Applicable layers: clay , silt , highly weathered rock;

    2. Large inlet of soil ,open shell design, easy to dump spoil so increases the drilling efficiency;

    3. Super strength structure for shell,guide plate etc, increase the life cycle of bucket; Guide strips 3.arranged on the surface of bucket can avoid drilling tool sucked by the pressure;


    Customizable Items

    1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ750,φ1150 etc.

    2. Teeth Custom : equiped different teeth, like bullet teeth, flat teeth according to different working condition;

    3. Kelly Box Custom : custom kelly box size based on the kelly bar, like 140*140, 170*170,250*250 etc;


    Cutting Dia.Shell HIT.Shell OD.Shell THK.

    Stiffening

    Ring THK.

    Stiffening

    Ring HIT.

    Teeth No.Weight
    φ600100052030403007802
    φ8001200720304030091250
    φ90012008203040300101530
    φ100012009203040300111720
    φ1200120011203040300132150
    Remark : All measurements are in millimeters, weight in kilograms.
