    Drilling Rig Double Wall Casing

    Ask Lasest Price
    Brand Name : BJTUFF
    Model Number : 600-1600mm
    Certification : ISO
    Price : Negotiated
    Supply Ability : 200 Pieces/30 days
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

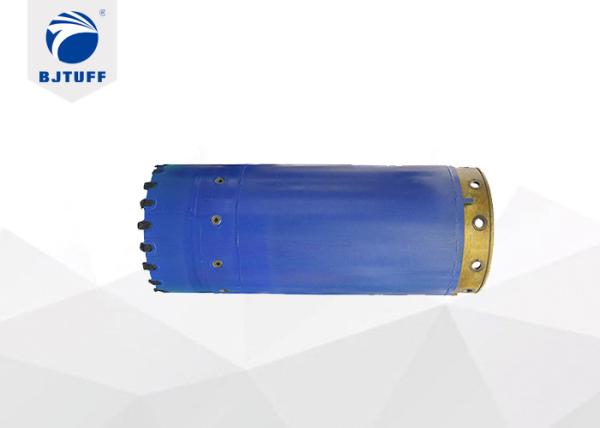

    Drilling Rig Double Wall Casing

    Rotary Drilling Rig Double Wall Casing Spare Part For Piling Foundation


    Feature

    1. The technical parameters and processes of the products are in line with the Bauer standard.

    2. Deformation and accuracy is strictly controlled through heat treatment, each casing is interchangeable.

    3. Besides Bauer, casing is also suitable for Soilmec, Casagrande and other brand.


    Shell THK.Casing THK.Weight
    Φ680/600 (2meter)12+840736
    Φ680/600 (4meter)12+8401384
    Φ680/600 (6meter)12+8402032
    Φ750/700 (2meter)12+840824
    Φ750/700 (4meter)12+8401542
    Φ750/700 (6meter)12+8402260
    Φ880/800 (2meter)12+840962
    Φ880/800 (4meter)12+8401811
    Φ880/800 (6meter)12+8402659
    Φ1000/920 (2meter)16+8401281
    Φ1000/920 (4meter)16+8402442
    Φ1000/920 (6meter)16+8403603
    Φ1080/1000 (2meter)16+8401370
    Φ1080/1000 (4meter)16+8402627
    Φ1080/1000 (6meter)16+8403885
    Φ1180/1100 (2meter)16+10401591
    Φ1180/1100 (4meter)16+10403078
    Φ1180/1100 (6meter)16+10404566
    Φ1280/1200 (2meter)16+10401728
    Φ1280/1200 (4meter)16+10403346
    Φ1280/1200 (2meter)16+10404963
    Φ1500/1400 (2meter)20+12502742
    Φ1500/1400 (4meter)20+12505064
    Φ1500/1400 (6meter)20+12507387
    Φ1700/1600 (2meter)20+12503126
    Φ1700/1600 (4meter)20+12505767
    Φ1700/1600 (6meter)20+12508409
    Remark : All measurements are in millimeters, weight in kilograms.

    Application

    1. Casing is used to minimize loosening of the soil structure around the pile during the drilling process.

    2. Casing tubes have the function of cutting the soil structure with a casing shoe,to support the bore hole temporarily,and by preceding the excavation,to forestall loosening of the ground structure.

    3. Casing tube is different from temporary casing, according to its structure can be divided into single-wall casing and double-wall casing; according to length can be divided into single section 2m, 3m, 4m casing section etc.


    FAQ

    Q: What's the nature of your company?
    We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality.


    Q: What's your main product?

    Our main products include kelly bars, drilling buckets, augers, core barrels, drilling teeth and holders, cutting bits. These products are acknowledged for their durability, robust construction, corrosion resistance and easy operations.


    Q: How do you control the quality of your product?

    First, we use good raw material;

    Second, we have strict quality controlling system;

    Third, we promise good quality and after-sales service.


    Q: Does this product support customization?
    Yes, due to the fact that we have our own factories, We can customize products per your request.


    Q: How long is your delivery time?
    Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
