Brand Name : | TUFF |
Model Number : | 680-2500mm |
Certification : | ISO9001 |
Price : | $900.00 - $10,000.00 / Unit |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 100 Unit/Units per Month |
Delivery Time : | 7-10 days after payment |

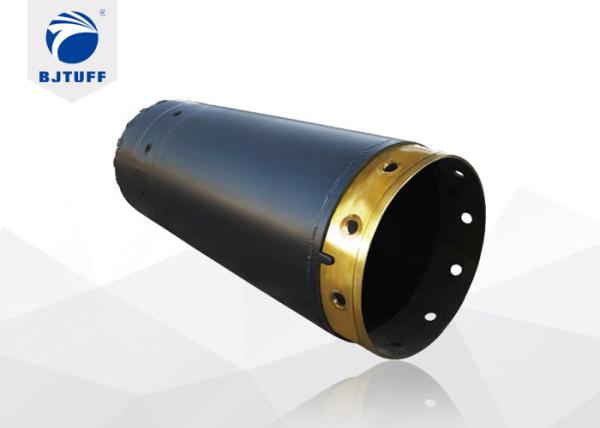

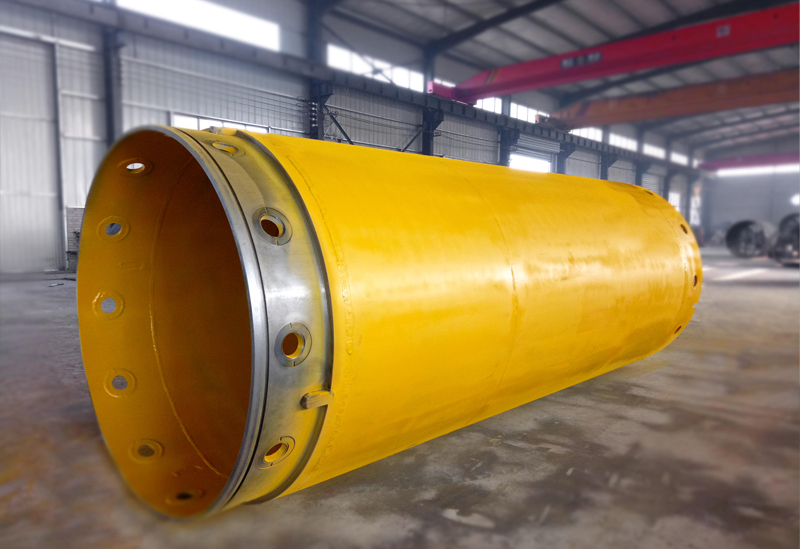

Drilling Bauer Casing Tube Double Wall Casing For Construction Equipment
Feature:
Casing Dia. | Outer Shell THK. | Inner Shell THK. | Casing THK. | Bolts No. | Weight(3 meter) |
680-600 | 12 | 8 | 40 | 8 | 1090 |
880-800 | 12 | 8 | 40 | 10 | 1335 |
1080-1000 | 16 | 8 | 40 | 10 | 2180 |
1280-1200 | 16 | 8 | 40 | 12 | 2480 |
1600-1500 | 20 | 10 | 50 | 16 | 4350 |
1800-1700 | 20 | 10 | 50 | 16 | 4990 |
2000-1880 | 20 | 16 | 60 | 12 | 6500 |
![]() |
