Q355B Gravel Straight Fishtail Pilot Drilling Auger Dia 1600mm For Pile Foundation

Hebei Tuff Heavy Industry Co., Ltd.
Contact Now
    Buy cheap Q355B Gravel Straight Fishtail Pilot Drilling Auger Dia 1600mm For Pile Foundation from wholesalers

    Buy cheap Q355B Gravel Straight Fishtail Pilot Drilling Auger Dia 1600mm For Pile Foundation from wholesalers
    • Buy cheap Q355B Gravel Straight Fishtail Pilot Drilling Auger Dia 1600mm For Pile Foundation from wholesalers
    • Buy cheap Q355B Gravel Straight Fishtail Pilot Drilling Auger Dia 1600mm For Pile Foundation from wholesalers

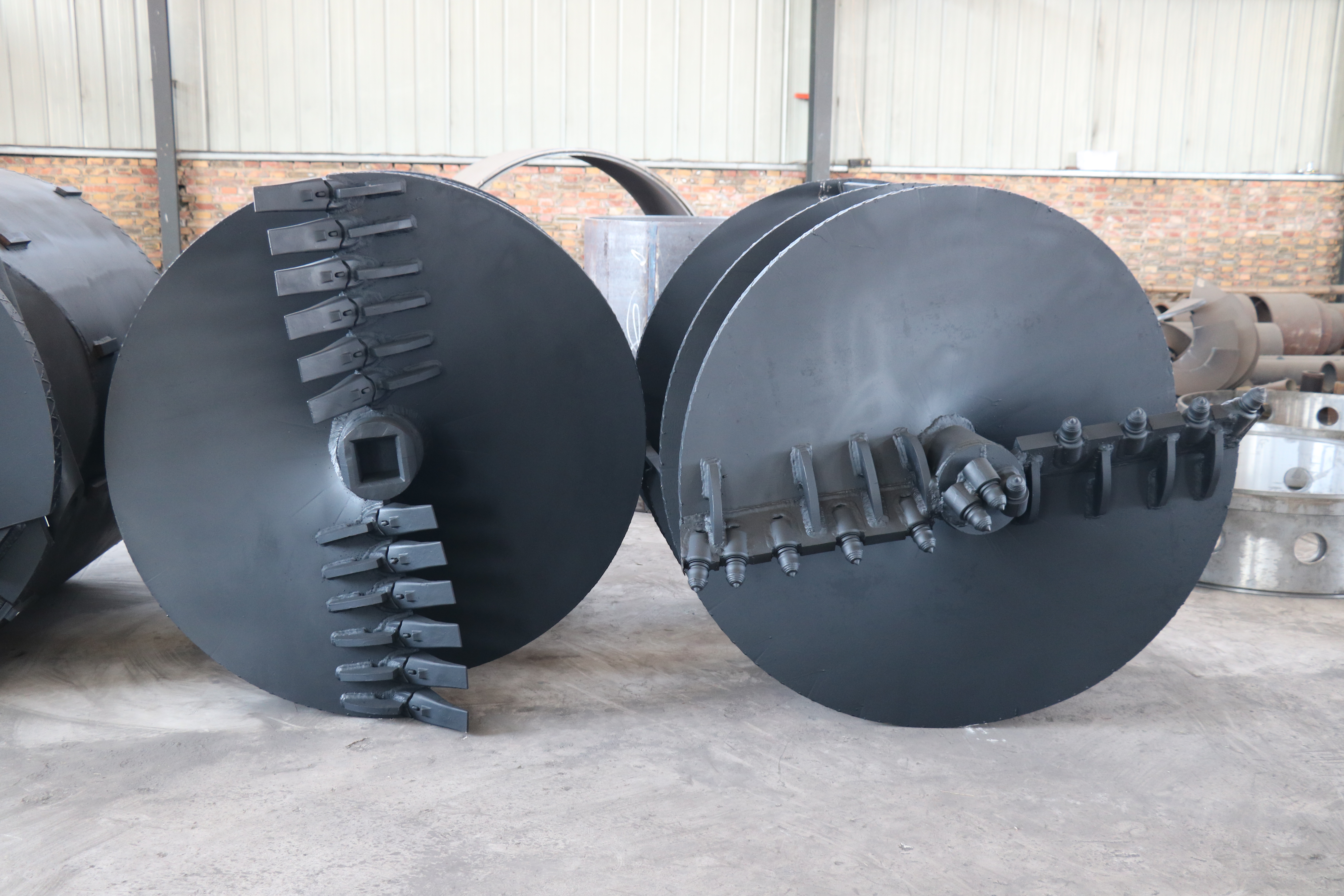

    Q355B Gravel Straight Fishtail Pilot Drilling Auger Dia 1600mm For Pile Foundation

    Ask Lasest Price
    Brand Name : BJTUFF
    Model Number : 600-2000mm
    Price : Negotiated
    Supply Ability : 200 Pieces/30 days
    Delivery Time : 7-10 work days
    Certification : ISO
    • Product Details
    • Company Profile

    Q355B Gravel Straight Fishtail Pilot Drilling Auger Dia 1600mm For Pile Foundation

    Construction Machinery Parts Drilling Auger Pile Foundation Drilling Multifunctional Auger


    Product advantage:

    1. Each different type of drilling tool is designed to meet maximum possible variations in the soil for specific job-site conditions.

    2. The angle of attack of drilling bits are variable according to the type of rock to generate maximum efficiency during.

    3. Each drilling bit is positioned at a specific angle on the bottom plate to make sure there is minimum wearing out and breakage of the drilling bits or holders.


    Feature

    1. Fish-tail pilot for accurate positioning;

    2. Hard-facing strips on flights for wear protection;

    3. Kelly box 150mm, 200mm, etc(optional);

    4. Applicable layers: clay, high-weathered layer, gravel etc;


    Customizable Items

    1. Spiral HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.

    2. Spiral Pitch Custom : adjust the spiral pitch according to different working condition;

    3. Key Component Reinforce Custom : strengthen the key component to extend life cycle;

    4. Teeth Custom : Equipped different teeth, like bullet teeth, flat teeth according to different working condition;

    5. Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 170*170, 250*250 etc;


    Application

    1. Soft to stiff silt and clay, loose to medium dense sand and gravel.

    2. Double cut soil auger is recommended for uncased bored or for bigger diameters.


    Cutting Dia.Spiral HIT.Spiral PitchSpiral THK.Teeth No.Weight
    Φ600100040030+204560
    Φ800150060030+204790
    Φ900150060030+205880
    φ1000150060030+2051050
    φ1200150060030+3071400
    φ1500150060030+3091980
    Φ1600150060030+3092280
    Φ1800150060030+30102950
    Φ2000150060030+35143450
    Remark : All measurements are in milimeters, weight in kilograms.

    FAQ

    Q: What's the nature of your company?
    We are Manufacturer. We have factories all over China, all products posted are produced by ourselves, so we can offer you competitive price while ensuring product quality. And our drilling tools are sell to Domestic Market(50.00%),North America(10.00%),Southeast Asia(8.00%),Northern Europe(6.00%),South America(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Europe(4.00%),Mid East(2.00%),Africa(1.00%),Oceania(1.00%),Eastern Asia(1.00%),Western Europe(1.00%),Southern Europe(1.00%).


    Q: How do you ship your products?
    Our goods can be transported by air and sea or per your request.


    Q: Does this product support customization?
    Yes, due to the fact that we have our own factories, We can customize products per your request.


    Q: How long is your delivery time?
    Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
