BJTUFF Spiral Straight Soil Drilling Auger 15Mpa To 60Mpa Conical Rock Auger

    Buy cheap BJTUFF Spiral Straight Soil Drilling Auger 15Mpa To 60Mpa Conical Rock Auger from wholesalers

    Buy cheap BJTUFF Spiral Straight Soil Drilling Auger 15Mpa To 60Mpa Conical Rock Auger from wholesalers
    • Buy cheap BJTUFF Spiral Straight Soil Drilling Auger 15Mpa To 60Mpa Conical Rock Auger from wholesalers
    • Buy cheap BJTUFF Spiral Straight Soil Drilling Auger 15Mpa To 60Mpa Conical Rock Auger from wholesalers

    BJTUFF Spiral Straight Soil Drilling Auger 15Mpa To 60Mpa Conical Rock Auger

    Ask Lasest Price
    Brand Name : BJTUFF
    Model Number : 300-3000mm or as required
    Certification : ISO9001
    Price : Prices are determined by quantity and model of product
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 300 Unit/Units per Month
    Delivery Time : 3-5 days after payment
    • Product Details
    • Company Profile

    BJTUFF Spiral Straight Soil Drilling Auger 15Mpa To 60Mpa Conical Rock Auger

    Drilling Tools Various Types Spiral Straight Soil Drilling Auger


    Feature:

    1. Design as straight type, better for carry soil ;

    2. Double cutter bearing uniform force, can avoid inclined hole ;

    3. Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil;


    Model List
    Cutting Dia.Spiral HIT.Spiral PitchShell THKSpiral OD.Center Tube OD.Teeth NO.Weight
    φ6001100600+40020+305502196535
    φ8001500600+40020+307502456750
    φ9001500600+50020+308502458820
    φ1000150060020+309502458950
    φ1200150060030+301150245111050
    φ1500150060030+301450273121450
    φ1600150060030+301550273141650
    φ1800150060030+301750273181950
    φ2000150060040+401950273182300
    Remark:all measurements in millimeters (mm); weight in kilograms(kg);

    Auger types and appliaction:


    1. Single cut / double cut concial rock auger :

    Main Application:

    Medium to strong rock (15-60Mpa);

    Features:

    Sturdy and wearable forging stwwk polit for accurate positioning;
    Hard facipsstrips on flights for wear protection.


    2. Single cut / double cut straight rock auger:

    Main Application:

    Very dense sand and gravel,weak rock (<5Mpa)

    Features:

    Sturdy and wearable forging stwwk polit for accurate positioning;
    Hard facipsstrips on flights for wear protection.


    3. Single cut / double cut straight soil auger:

    Main Application:

    Soft to stiff silt and clay ,loose to medium dense sand and gravel.

    Features:

    Fish-tail Pilot for accurate positioning;

    Hard facipsstrips on flights for wear protection.


    Customizable Items:

    1. Cutting DIA. Custom : design various cutting diameter based on demand.

    2. Spiral HIT. Custom : design as demand, prolonging the spiral height can increase of efficiency by drilling more.

    3. Spiral Pitch Custom : adjust the spiral pitch according to different working condition;

    4. Key Component Reinforce Custom : strengthen the key component to extend life cycle;

    5. Teeth Custom : Equipped bullet teeth or flat teeth according to different working condition;

    6. Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 130*130, 150*150,200*200 etc;

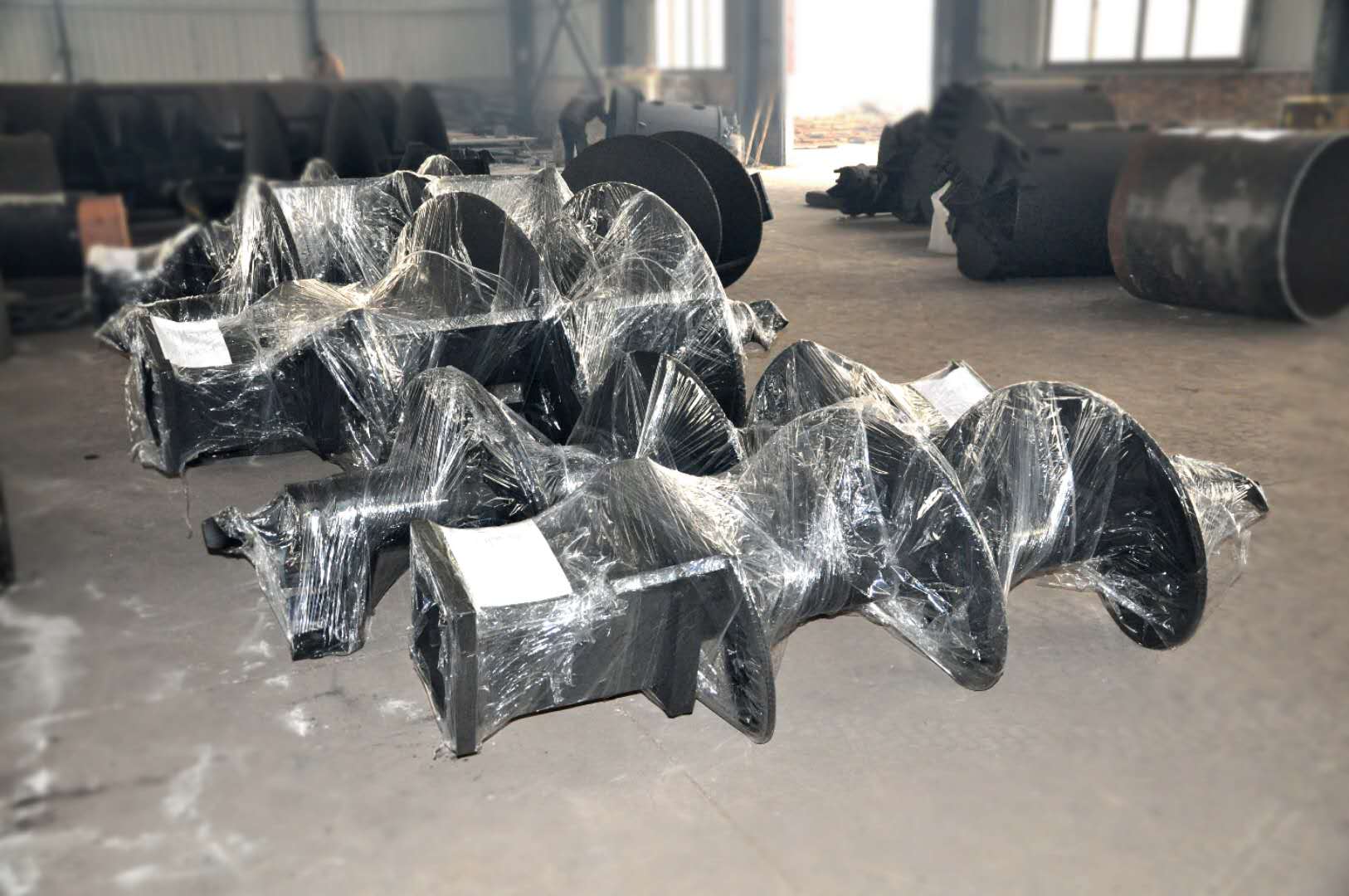

    Package:

    Packaging details for BJTUFF open type bucket
    1. 100% inspection before shipment.
    2. Wrapped with plastic film.
    3. Fixed with iron support.
    4. Packed with plastic cases and wooden cases for drilling bits, clay teeth or other small accessories.


    Company advantage:

    Beijing Tuff Equipment and Technology CO.,LTD. ,research construction method and ability of kelly bar and driling tools ,offer one step solution for customers in foudations constrction field.

    1- We purchase top quality raw materials from leading raw-steel factory.

    2- Our drilling tools can be customized depending on kinds of rigs and site conditions.

    3- We require high quality of welding, therefore we employ at least 8 years experienced welders.
