Brand Name : | TUFF |
Model Number : | 600-1200mm or as required |
Certification : | ISO9001 |
Price : | $950.00 - $2,500.00 / Unit |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 200 Unit/Units per Month |
Delivery Time : | 3-5 days after payment |

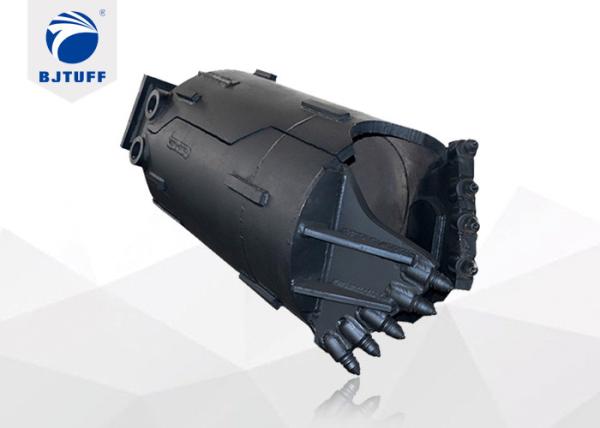

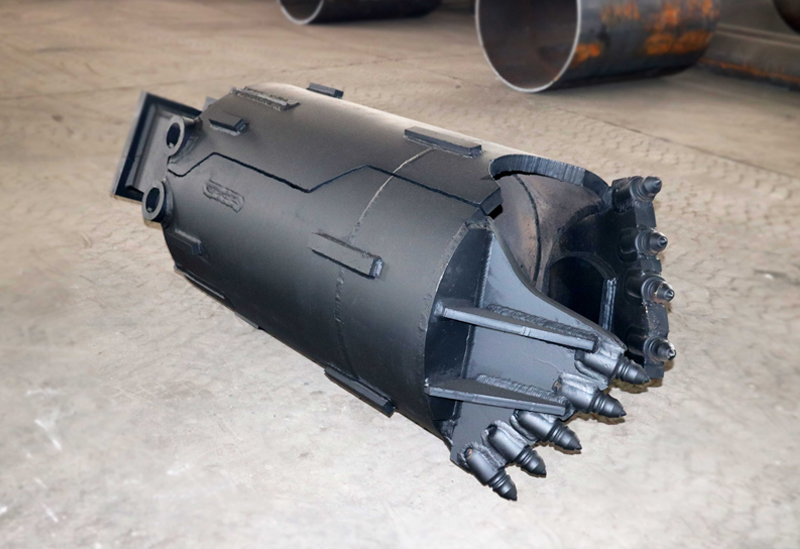

Bauer/Soilmec/Mait rotary rig parts drilling tools drilling bucket with open type body
Feature:
Large inlet of soil ,open shell design, easy to dump spoil so
increases the drilling efficiency;
Super strength structure for shell,guide plate etc, increase the
life cycle of bucket;
Guide strips arranged on the surface of bucket can avoid drilling
tool sucked by the pressure;
Applicable layers: clay , silt , highly weathered rock;
Model List
Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. | Stiffening Ring THK. | StiffeningRing HIT. | Teeth | Weight No. |
φ600 | 1000 | 510 | 30 | 40 | 300 | 7 | 840 |
φ800 | 1200 | 710 | 30 | 40 | 300 | 9 | 1280 |
φ900 | 1200 | 810 | 30 | 40 | 300 | 10 | 1500 |
φ1000 | 1200 | 910 | 30 | 40 | 300 | 11 | 1730 |
φ1200 | 1200 | 1110 | 30 | 40 | 300 | 13 | 2140 |
Remark : The length is in milimeters, weight in kilograms.
Customizable Items:
Cutting DIA. Custom : design various cutting diameter based on
demand, like φ950,φ1050 etc.
Teeth Custom : equiped different teeth, like bullet teeth, flat
teeth according to different working condition;
Kelly Box Custom : custom kelly box size based on the kelly bar,
like 130*130, 150*150,200*200 etc;
![]() |
