Brand Name : | TUFF |
Model Number : | 400-3000mm or as required |
Certification : | ISO9001 |
Price : | $1,000.00 - $10,000.00/Unit |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 300 Unit/Units per Month |
Delivery Time : | 3-5 days after payment |

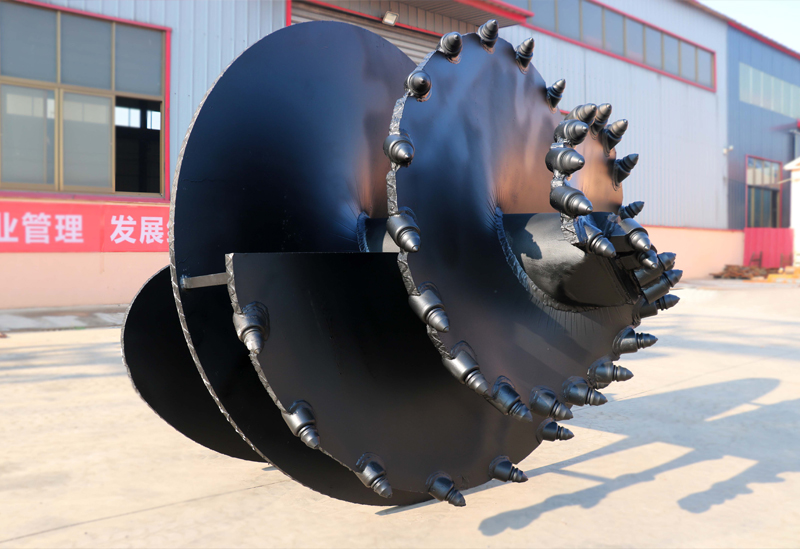

Double Start Single Flight Conical Rock Drilling Auger
Feature:
Location by pilot, conical structure drilling into the rock;
Double cutter bearing uniform force, can avoid inclined hole ;
Double spiral easy to carry soil, but meet cohensive soil, single
spiral is easy to dump spoil;
Applicable layers: medium weathered rock, bedrock;
Cutting Dia. | Spiral HIT. | Spiral Pitch | Spiral THK. | Spiral OD. | Center Tube OD. | Teeth No. | Weight |
φ600 | 1000 | 400 | 30+20 | 550 | 219 | 12 | 523 |
φ800 | 1500 | 600 | 30+20 | 750 | 219 | 15 | 720 |
φ900 | 1500 | 600 | 30+20 | 850 | 219 | 20 | 774 |
φ1000 | 1500 | 600 | 30+20 | 950 | 219 | 23 | 853 |
φ1200 | 1500 | 600 | 30+30 | 1150 | 219 | 27 | 1023 |
φ1500 | 1500 | 600 | 30+30 | 1450 | 273 | 33 | 1310 |
φ1600 | 1500 | 600 | 30+30 | 1550 | 273 | 36 | 1650 |
φ1800 | 1500 | 600 | 30+30 | 1750 | 273 | 40 | 2150 |
φ2000 | 1500 | 600 | 40+40 | 1950 | 273 | 45 | 2580 |
φ2200 | 1500 | 600 | 40+40 | 2150 | 273 | 52 | 3150 |
φ2500 | 1500 | 600 | 40+40 | 2450 | 273 | 58 | 3850 |
Remark : The length is in milimeters, weight in kilograms.
Customizable Items:
Cutting DIA. Custom : design various cutting diameter based on
demand, like φ950,φ1050 etc.
Spiral HIT. Custom : design as demand, prolong or shortten,
increase of efficiency by drilling more.
Spiral Pitch Custom : adjust the spiral pitch according to
different working condition;
Key Component Reinforce Custom : strengthen the key component to
extend life cycle;
Kelly Box Custom : custom kelly box size based on the kelly bar,
like 130*130, 150*150,200*200 etc;
![]() |
