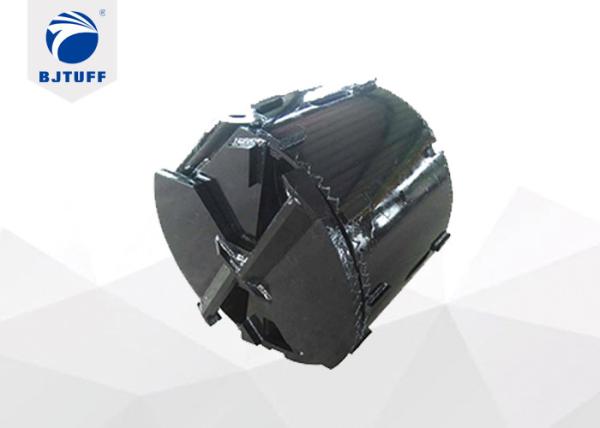

Piling Rig Spare Parts Guide Plate Cleaning The Bottom Drill Bucket

Application:

BJTUFF cleaning bucket is used for Cleaning the bottom of borehole.

Applicable scope: cleaning spoil at pile bottom, soft layer；

Feature

For use in cleaning material from the hole that augers cannot retrieve. The operator simply put the tool into the hole with the door open, lower to the bottom of the hole making only a few revolutions before placing the machine in reverse to close the door. Because the tool is vented, the operator simply pull the tool up to the top of the shaft, lower the tool to the ground and place drill in forward to open the door.

1 Straight or Conical shell can be optional according to the different condition .

2 Throughout the ventilation hole.

3 Hard facing strips for wear protection.

4 Kelly box can be customized matched with various Kelly bars.

Model List:

Customizable Items:

1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ950,φ1050 etc.

2. Shell HIT. Custom : design as demand, prolong or shorten, increase of efficiency by drilling more.

3. Bottom Custom : single bottom or double bottom,single cutter or double bottom;

4. Kelly Box Custom : custom Kelly box size based on the Kelly bar

5. Bottom Open Mechanic : half-automatic or manful mechanic bottom open system.

Company advantage:

1- We purchase top quality raw materials from leading raw-steel factory.

2- Our drilling tools can be customized depending on kinds of rigs and site conditions.

3- We require high quality of welding, therefore we employ at least 8 years experienced welders.

4- Understand what customers need and provide what customers want, We provide one-stop solution for the world’s foundation construction users.

FAQ:

Q1. What does your company produce?

The main products of our company include drilling tools,drilling teeth,casing series,kelly bar accessories and ect.

Q2. How do you control the quality of your products?

First,we use good steel GB-Q345B.Our welding stick is flux-cored wire that applied to ship engineering.

Second, We strictly control the process,so If the quality of the product itself has the problem of open welding, we will give compensation;

Third, Customers could contact our sales managers on line/by email/by phone if there are any question during installation or construction, solutions will be given within 12 hours.
